Configure event log filter

Event Log allows viewing, filtering, and searching SNMP traps, MQTT messages, as well as viewing the history of states for all system objects.

To configure the event log filter, follow these steps:

  1. On the toolbar, click on the username and in the opened menu, select the Configuration option.

  2. On the Users tab, in the Users and Groups section, select the user or group from the list.

  3. On the Event Log tab, configure the filter using the following parameters:

    • Trap OID - the object identifier in the SNMP MIB

    • Sender Address - the address of the message sender

    • Text - the message text

NOTE: You can configure the event log filter by one parameter or by multiple parameters simultaneously.

To save the changes, click the [#button-blue]# Save button.

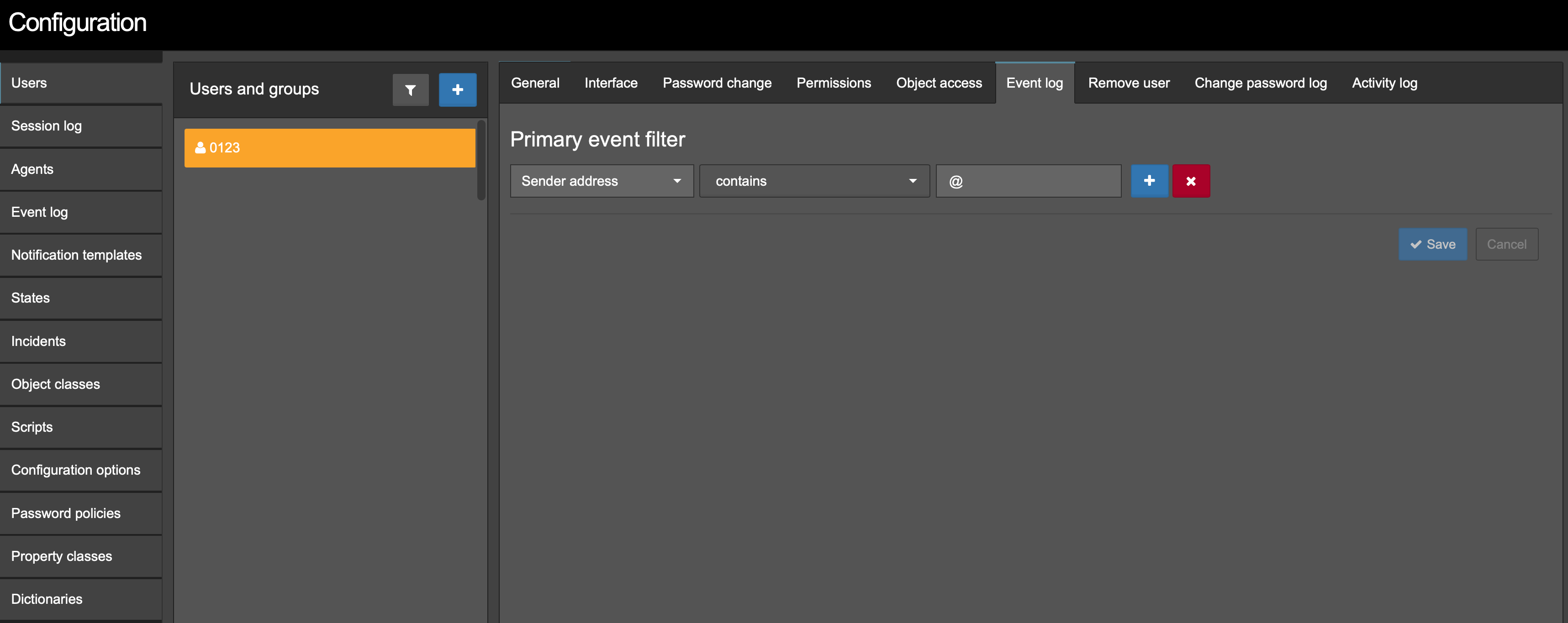

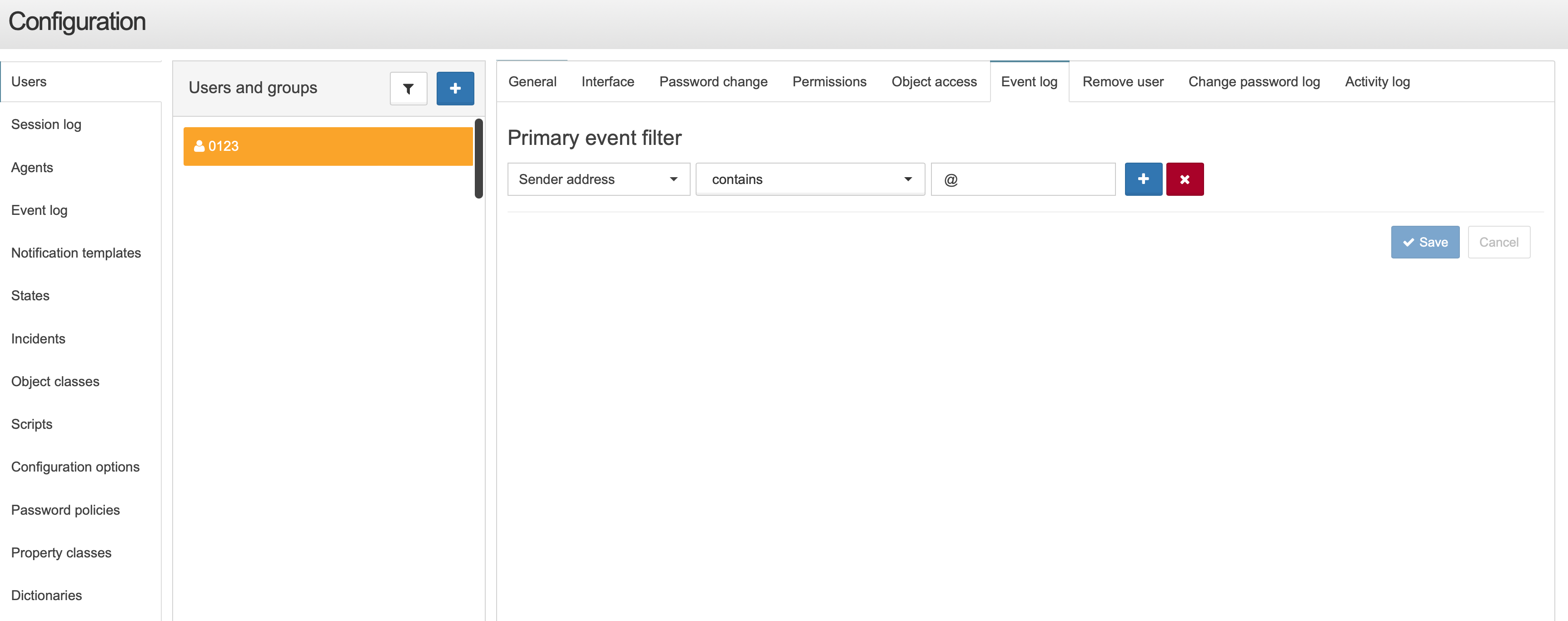

In the example below, the filter is set by the sender’s address value.

event log light
event log dark
